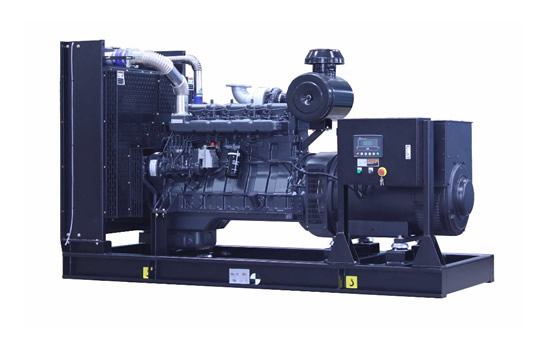

Products Detail

  • Brand: Shanghai
  • Model:SC9H272e
  • Alternator Brand: TRIO
  • Standby Power (kVa/kw): 330/263

OUTPUT VALUES

Standby Power Voltage 230/400
Standby Power kVA 330
Standby Power kW 263
Standby Power Amper 475
Prime Power Voltage 230/400
Prime Power kVA 297
Prime Power kW 238
Prime Power Amper 428
Standby Power Voltage 230/400

DIMENSIONS & WEIGHT

Without Canopy Width 1100mm
Without Canopy Length 2500 mm
Without Canopy High 1600 mm
Without Canopy Weight 2400 kg
Without Canopy Fuel Tank Capacity 300 lt
With Canopy Width 1100 mm
With Canopy Length 3100 mm
With Canopy High 2000 mm
With Canopy Weight 3150 kg
With Canopy Fuel Tank Capacity 300 lt

ALTERNATOR INFORMATIONS

Standby Power (kVa/kw) 330/263
Prime Power (kVa/kw) 297/237
Brand TRIO
Output Voltage (V) 230/400
Frequency (Hz) 50
Stationary Vol. Regulation(±) 0,01
Short Circuit Current %300 (10 sec)
Insulation H
Protection IP23
E ciency (%) 94,2
Overloading 110% for 1 hour
Power Factor (cos Q=0.8) 0,8
Tot. Harmonic Dist. Rate <1 %
Connection Type Star
Number of Pole 4
Number of Bearing Single

DIESEL ENGINE

Brand Shanghai
Model SC9H272e
Max. Total Output Pow. (kWm/hp) 263/340
Cylinder Displacement (lt) 8,8
Cylinder Orientation 6 Single Line
Bore x Stroke(mm*mm) 135*150
Compression Ratio 17;1
Governor Type Electronic
Rotation 1500 RPM
Aspiration System Turbo Charged
Injection Direct
Cooling System Water Cooled
Electrical System(V DC) 24
Oil Capacity (lt) 34,4
Engine Coolant Capacity (lt) 70
Fuel Cons. %50 (lt/h) 30.2
Fuel Cons. %75 (lt/h) 44.3
Fuel Cons. %100 (lt/h) 60.1
