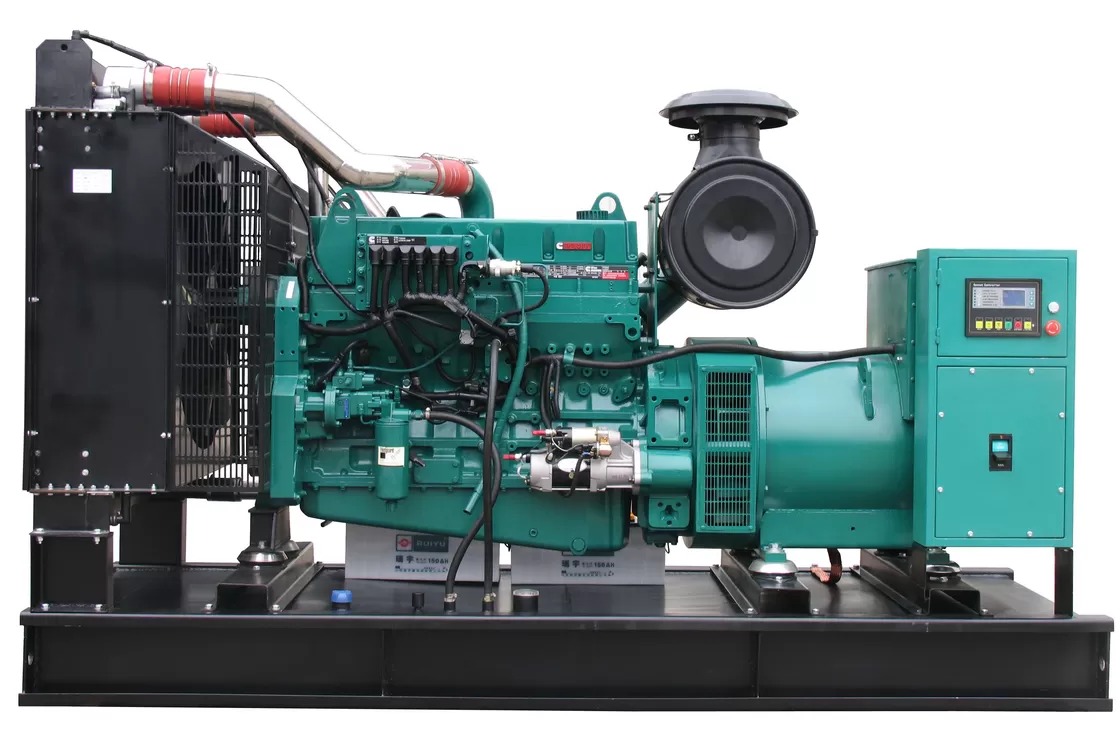

Products Detail

  • Brand: Cummıns
  • Model:QSK60-G4
  • Alternator Brand: Leroy Somer
  • Standby Power (kVa/kw): 2250/1800

OUTPUT VALUES

Standby Power Voltage 230/400
Standby Power kVA 2250
Standby Power kW 1800
Standby Power Amper 3240
Prime Power Voltage 230/400
Prime Power kVA 2045
Prime Power kW 1636
Prime Power Amper 2945

DIMENSIONS & WEIGHT

Without Canopy Width 2400mm
Without Canopy Length 6000 mm
Without Canopy High 3100 mm
Without Canopy Weight 15600 kg
Without Canopy Fuel Tank Capacity 2000 lt
With Canopy Width 2800 mm
With Canopy Length 9000 mm
With Canopy High 3300 mm
With Canopy Weight 21100 kg
With Canopy Fuel Tank Capacity 2000lt

ALTERNATOR INFORMATIONS

Standby Power (kVa/kw) 2250/1800
Prime Power (kVa/kw) 2045/1636
Brand Leroy Somer
Output Voltage (V) 230/400
Frequency (Hz) 50
Stationary Vol. Regulation(±) 0,01
Short Circuit Current %300 (10 sec)
Insulation H
Protection IP23
E ciency (%) 88
Overloading 110% for 1 hour
Power Factor (cos Q=0.8) 0,8
Tot. Harmonic Dist. Rate <1 %
Connection Type Star
Number of Pole 4
Number of Bearing Single

DIESEL ENGINE

Brand Cummıns
Model QSK60-G4
Max. Total Output Pow. (kWm/hp) 1915/2567
Cylinder Displacement (lt) 60.2
Cylinder Orientation 16 cylinders - V type
Bore x Stroke(mm*mm) 159 X 190
Compression Ratio 14.5:1
Governor Type Electronic
Rotation 1500 RPM
Aspiration System Turbo Charged and AfterCooled
Injection Direct
Cooling System Water Cooled
Electrical System(V DC) 24
Oil Capacity (lt) 280
Engine Coolant Capacity (lt) 500
Fuel Cons. %50 (lt/h) 200
Fuel Cons. %75 (lt/h) 291
Fuel Cons. %100 (lt/h) 394
